Antistatic surge diode

Series overview

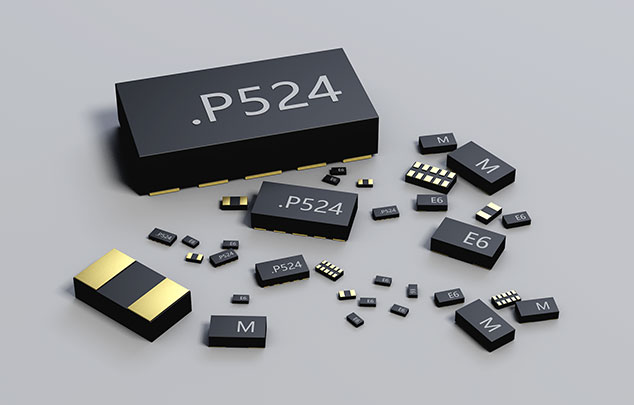

LIZ anti-static surge diode is a kind of electronic component for protection. When the product is subjected to surge or electrostatic shock, it can protect the application damage to the product.
LIZ has professional wafer design and sealing, and is committed to continuously developing new wafers with smaller package products to provide thinner and smaller protective component products that are in demand in the market.

product image Number of channels Starting voltage (V) Breakdown voltage (V) Leakage current (nA) Antistatic ability (contact) (kV) Antistatic ability (gap) (kV) Maximum peak pulse current (A) tp = 8/20 μs Clamping voltage (V) tp = 8/20 μs Capacitance (pF) I/O-GND VR=0V, f=1MHz Package Specifications(PDF)
ESDKR5V0BS ESDKR5V0BS
ESDKR5V0BS
1 5 5.6 10 ±25 ±30 3.5 3.5 10 DFN0603-2
ESDKR5V0UJ ESDKR5V0UJ
ESDKR5V0UJ
1 5 6 50 ±19 ±19 2 12 @IPP=1A 15 @IPP=2A 0.6 DFN0603-2
ESDQR3V3B ESDQR3V3B
ESDQR3V3B
1 3.3 3.5 1000 ±30 ±30 15 6.0 @IPP=1A 12 @IPP=15A 30 DFN1006-2
ESDQR3V3BS ESDQR3V3BS
ESDQR3V3BS
1 3.3 4 1000 ±12 ±20 5 5.5 @IPP=1A 8.0 @IPP=5A 10 DFN1006-2
ESDQR5V0B ESDQR5V0B
ESDQR5V0B
1 5 6 50 ±30 ±30 7.9 9.0 @IPP=1A 17.5 @IPP=7.9A 20 DFN1006-2
ESDQR5V0BJ ESDQR5V0BJ
ESDQR5V0BJ
1 5 6 50 ±8 ±15 2 14 @IPP=1A 0.6 DFN1006-2
ESDQR5V0BS ESDQR5V0BS
ESDQR5V0BS
1 5 6 100 ±8 ±15 2 12 @IPP=1A 17 @IPP=2A 10 DFN1006-2
ESDQR5V0BX ESDQR5V0BX
ESDQR5V0BX
1 5 6 50 ±8 ±15 2 14 @IPP=1A 0.3 DFN1006-2
ESDQR5V0U ESDQR5V0U
ESDQR5V0U
1 5 6 1000 ±8 ±15 10 13.5 @IPP=10A 80 DFN1006-2
ESDQR5V0UJ ESDQR5V0UJ
ESDQR5V0UJ
1 5 6 50 ±18 ±20 3.6 12 @IPP=1A 20 @IPP=3A 0.5 DFN1006-2
ESDQR12V0B ESDQR12V0B
ESDQR12V0B
1 12 14.6 50 ±8 ±16 6 19 @IPP=1A 25 @IPP=6A 30 DFN1006-2
ESDQR12V0U ESDQR12V0U
ESDQR12V0U
1 12 13.3 50 ±30 ±30 5 19 @IPP=1A 24 @IPP=5A 60 DFN1006-2
ESDQR24V0B ESDQR24V0B
ESDQR24V0B
1 24 26.5 50 ±25 ±25 3 36 @IPP=1A 42 @IPP=3A 30 DFN1006-2
ESDQR24V0U ESDQR24V0U
ESDQR24V0U
1 24 26.5 50 ±25 ±25 3 36 @IPP=1A 42 @IPP=3A 35 DFN1006-2
ESDQR36V0B ESDQR36V0B
ESDQR36V0B
1 36 40 100 ±25 ±25 1.5 58 @IPP=1A 20 DFN1006-2
ESDQR36V0U ESDQR36V0U
ESDQR36V0U
1 36 40 100 ±25 ±25 1.5 58 @IPP=1A 30 DFN1006-2
RESDMRA3V3J RESDMRA3V3J
RESDMRA3V3J
4 3.3 3.4 100 ±8 ±15 4 8 @IPP=1A 10 @IPP=3A 0.65 DFN2510-10
RESDMRA5V0J RESDMRA5V0J
RESDMRA5V0J
4 5 6 1000 ±12 ±17 5 15 @IPP=1A 25 @IPP=5A 0.8 DFN2510-10
RESDMRA5V0X RESDMRA5V0X
RESDMRA5V0X
4 5 6 1000 ±12 ±17 3.4 15 @IPP=1A 25 @IPP=3.4A 0.4 DFN2510-10
